> Direct Answer: Yes, you can safely mount a TV on Acoustic Wood Slat Wall Panels — but you must anchor the bracket through the panel and PET felt backing directly into wall studs or solid masonry. Never rely on the panel itself to hold the weight. With the right screws, spacers, and installation sequence, your TV will be secure and your acoustic wall will remain undamaged.
Table of Contents
Install a TV on Acoustic Wood Slat Wall Panels
Mounting a TV on a feature wall is one of the most common design decisions in modern living rooms and home theaters. But when that feature wall is covered with Acoustic Wood Slat Wall Panels, the installation gets more complicated than a standard drywall job. The combination of Acoustic Wood Slat Wall Panels, a compressible PET felt backing layer, and the need to preserve both the acoustic performance and visual finish means you need a specific approach.
Here is the complete step-by-step process, covering the tools you will need, the physics of why standard TV mounts fail on acoustic panels, and the safest installation method used by professionals.
—
Why Standard TV Mounting Fails on Acoustic Panels

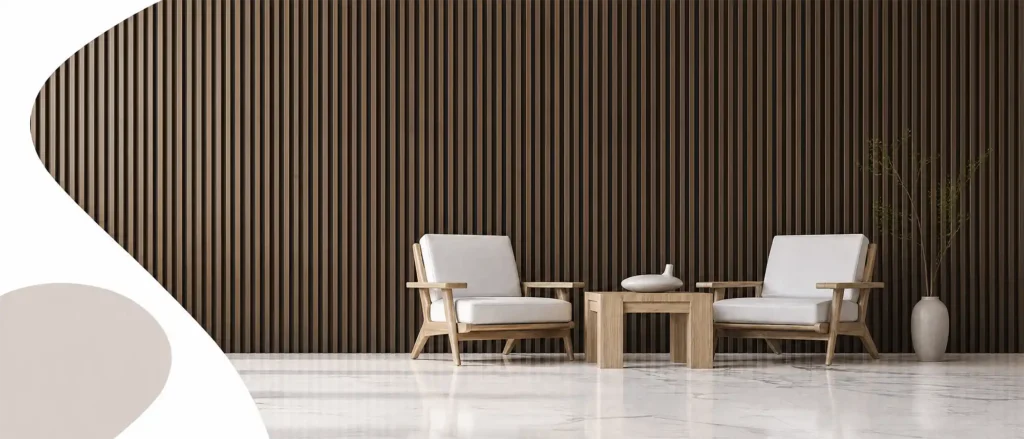

Acoustic Wood Slat Wall Panels — like the Wonear® Wood Slat Acoustic Panel in the standard 2400×600mm format — are constructed with three layers: a real wood veneer or MDF slat surface, a middle substrate layer, and an approximately 9mm thick PET polyester fiber felt backing. This felt layer is what gives the panel its sound-absorbing properties, but it also creates a compressible gap between the rigid slat surface and the wall behind it.
When you tighten a TV bracket screw against this type of panel, two things can go wrong:
1. The felt compresses over time. As the TV bracket pulls tight against the wall, the PET felt underneath gradually flattens. This loosens the bolts and can cause the bracket to sag — a dangerous situation for a 20 to 40 kg television.
2. The panel itself cannot bear load. The Acoustic Wood Slat Wall Panelsand MDF base are decorative and acoustic materials, not structural ones. Lag bolts driven only into the panel will eventually pull out, risking TV damage and wall destruction.
The solution in every case is to bypass the panel entirely for load-bearing purposes and anchor directly into the building structure behind it.
—
Tools and Materials You Will Need
| Item | Purpose |
| Stud finder (electronic, deep-scan mode) | Locate studs through the panel + drywall |
| Spirit level (≥ 600mm) | Ensure bracket and TV are perfectly horizontal |
| Impact driver or drill | Drive lag bolts into studs |
| Lag bolts (M8 or 5/16″, length = panel thickness + drywall + 50mm minimum embedment) | Primary load-bearing fasteners |
| Nylon spacers or steel standoffs (matching bolt diameter, 10–15mm length) | Prevent PET felt compression |
| TV wall mount bracket (VESA-compatible) | Hold the TV |
| Painter’s tape and pencil | Mark positions without damaging panel surface |
| Socket wrench set | Final tightening |
If you are mounting into masonry or concrete (common in commercial and European construction), you will also need a hammer drill, masonry drill bits, and appropriate sleeve anchors or concrete screws.
—
Step 1: Mark the TV Position and Locate Studs
Before doing anything else, determine exactly where the TV will sit on the wall. Hold the TV or its cardboard template at the desired viewing height — the center of the screen should be roughly at eye level when seated, typically 1000 to 1100mm from the floor.
Once the position is set, use painter’s tape to mark the top and bottom edges of where the bracket will go. The tape protects the wood veneer surface from pencil marks and accidental scratches.
Now run the stud finder in deep-scan mode across the marked area. Acoustic panels add roughly 21mm of total thickness to the wall (12mm slat/MDF + 9mm felt), so a basic stud finder may struggle. An electronic model with deep-scan capability is strongly recommended. Mark the center of each stud on the painter’s tape.
> Important: Most wood-frame walls have studs spaced 400mm or 600mm on center. If your bracket is wider than the stud spacing, you will need to mount a plywood backer board across two studs first, then attach the bracket to the backer. Never use drywall anchors alone for a TV — even “heavy duty” toggle bolts are not rated for the dynamic load of an articulated TV arm.
—
Step 2: Pre-Drill Through the Panel
With stud locations marked, pre-drill pilot holes through the acoustic panel at each mounting point. Use a wood drill bit slightly smaller than the diameter of your lag bolts (typically 4–5mm for M8 bolts).
Drill slowly and steadily. The goal is to create a clean hole through the Acoustic Wood Slat Wall Panels layer, the MDF substrate, and the PET felt backing without tearing or fraying the felt. A sharp bit and moderate speed will produce the cleanest result.
If you encounter resistance partway through, stop and check — you may have hit a stud at an angle. Reposition and continue.
> Pro tip from Wonear® installation support: Wonear® Acoustic Wood Slat Wall Panels use E0-grade materials with zero formaldehyde emissions, so drilling creates no toxic dust. The PET felt backing is also 100% recyclable polyester fiber, meaning any offcuts or shavings are safe to handle and dispose of normally.
—
Step 3: Install Spacers to Prevent Felt Compression
This is the step most DIY guides miss — and it is the difference between a bracket that stays tight for years and one that loosens in three months.
Between the back of the TV bracket and the wall surface behind the panel, you must install rigid spacers (nylon or steel standoffs) that span the full thickness of the acoustic panel. These spacers transfer the clamping force directly from the bracket to the wall stud, bypassing the panel entirely.
How to do it:
1. Slide a spacer over each lag bolt before inserting it through the bracket.
2. The spacer should be approximately 2–3mm longer than the total panel thickness — this ensures the bracket face sits flush against the outer surface of the slats without crushing the PET felt.
3. Tighten each lag bolt gradually in a cross pattern (top-left → bottom-right → top-right → bottom-left) until the bracket is firmly seated against the wall, with the panel gently sandwiched between the bracket face and the studs.
—
Step 4: Mount the Bracket and Check Level
With all lag bolts in place but not fully torqued, place your spirit level on the bracket and adjust as needed. Once level, torque each bolt to the manufacturer’s specification — typically 60–80 Nm for M8 lag bolts into timber studs.
Give the bracket a firm pull test with your body weight before hanging the TV. If there is any movement, creaking, or give, stop and re-check your stud engagement. The bracket should feel absolutely solid.
—
Step 5: Hang the TV and Route Cables
Lift the TV onto the bracket (this is a two-person job for screens 55 inches and above). Secure the locking mechanism according to the bracket manufacturer’s instructions.
For cable management, the gap created by the acoustic panel can actually work in your favor. Low-profile HDMI and power cables can be routed behind the slats and out through the bottom edge of the panel, creating a clean, wireless look without cutting channels into the drywall. Just ensure any in-wall power cables are rated for in-wall use and comply with local electrical codes.
—
Special Case: Fire-Retardant Panel Installations
If your wall uses Class A or Class B fire-retardant acoustic panels (such as Wonear® fire-rated Acoustic Wood Slat Wall Panels), take extra care not to compromise the fire barrier. The spacers and lag bolts described above create only small penetrations and do not meaningfully affect fire performance. However:
- Do not cut large openings behind the TV without consulting a fire safety professional.
- Ensure any electrical outlets or cable pass-throughs are properly fire-stopped with intumescent sealant.
- Keep the TV bracket itself at least 50mm away from any recessed lighting or heat sources behind the panel.
—
TV Size, Weight, and Mounting Method ? Quick Decision Table
Use this table to confirm the right approach before you drill. The panel itself never carries the load ? the structure behind it does.
| TV size | Typical weight | Minimum fixing | Backer board needed? |
| 32?43? | 5?10 kg | 2 studs (or 4 masonry anchors) | Only if no stud falls behind the bracket center |
| 50?55? | 12?18 kg | 2 studs with M8 lag bolts | Recommended for articulated mounts |
| 65?75? | 20?35 kg | 3?4 studs, or plywood backer across 2 studs | Required for full-motion mounts |
| 85?+ | 40+ kg | Plywood backer across 3+ studs + structural anchors | Required |
If your bracket cannot reach two studs, install an 18mm plywood backer board across the studs first, then attach the bracket to the backer. This spreads the TV’s weight over the structure instead of concentrating it on the panel ? the same principle contractors use for kitchen cabinets and bathroom fixtures.
Five Mistakes That Damage Panels or TVs
1. Skipping the spacer. Without standoffs, the PET felt compresses, the bracket loosens over months, and the TV starts to sag. This is the most common field failure on acoustic walls.
2. Relying on drywall anchors. Even “heavy duty” toggle bolts are rated for static loads only. An articulated or motorized mount adds dynamic load that will pull them out.
3. Drilling through a slat joint. Positioning a hole exactly on a slat gap can crack the MDF edge. Mark stud positions on tape, then offset the bracket so fasteners land on solid slat surface.
4. Over-torquing the bolts. Tightening past specification crushes the felt even with spacers. Torque to the mount manufacturer’s spec ? typically 60?80 Nm for M8 into timber studs.
5. Ignoring fire-rated installations. On Class A/B fire-retardant walls (like Wonear? fire-rated panels), unsealed cable pass-throughs can breach the fire barrier. Seal every penetration with intumescent caulk and keep the bracket 50mm clear of heat sources.
Frequently Asked Questions
Can I mount a TV on acoustic panels without hitting studs?
No. Acoustic panels — whether wood slat, PET felt, or polyester fiber — are not structural materials. All TV mounting weight must be transferred to wall studs, masonry, or a properly installed backer board. Drywall anchors rated for static loads will fail under the dynamic forces of an articulated TV mount.
Will drilling through the acoustic panel damage its sound absorption?
The small pilot holes required for lag bolts have a negligible impact on acoustic performance. Sound absorption is a surface-area function, and four or six 5mm holes in a wall covering several square meters will not measurably change the room’s acoustics. The PET felt continues to absorb sound across the rest of the panel’s surface.
What if I need to remove the TV and panel later?
One advantage of using the spacer method is reversibility. The panel is not glued or permanently bonded to the bracket. When you remove the TV and unscrew the bracket, the panel remains intact. The small screw holes can be filled with a matching wood filler or covered with a slat offcut. Wonear® panels are designed for modular installation, so you can even swap individual slats if needed.
—
